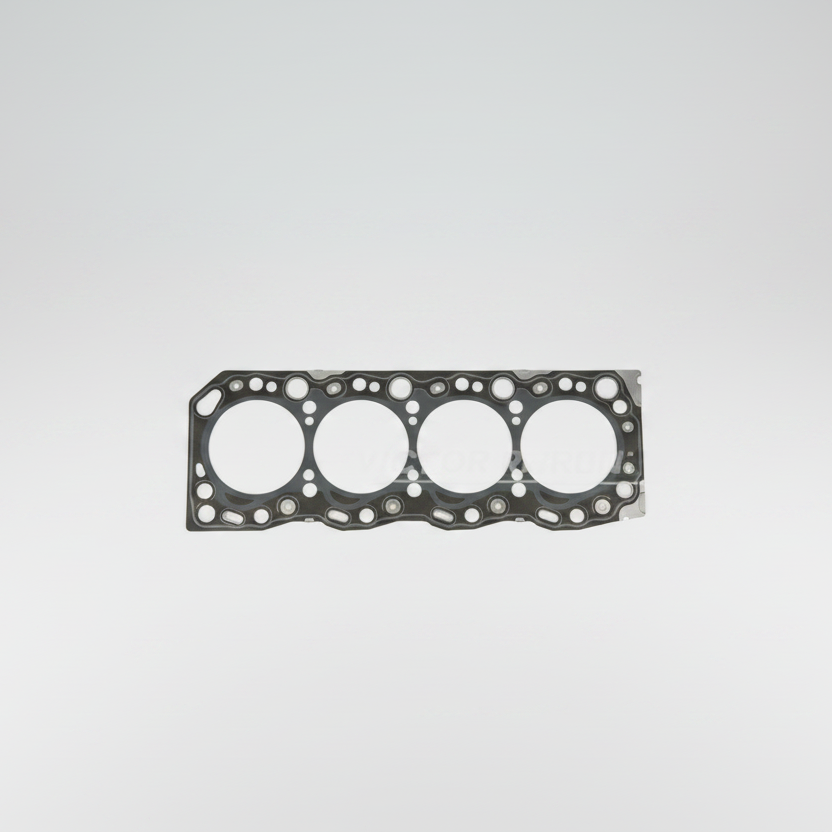

Head Gasket Hiace 2l, 3l, 5l

Head Gasket – Toyota 2L / 3L / 5L Diesel Engines

Premium Grade OEM+ Quality

Made in Germany

Please choose the correct gasket thickness based on the factory hole markings and piston protrusion measurements.

Available Thickness Options:

• 1 Notch / Hole – ~1.40–1.50 mm
• 3 Notch / Hole – ~1.50–1.60 mm
• 5 Notch / Hole – ~1.60–1.70 mm

NOTE: You are purchasing ONE engine head gasket.

Compatible Engines:

• 2L
• 2LT
• 2LTE
• 3L
• 5L

IMPORTANT:
Unlike the 1KZ engine, Toyota L-series diesel engines use a different gasket thickness identification system. The correct gasket thickness is determined by piston protrusion measurement at Top Dead Center (TDC).

Toyota L-series engines commonly use:

• 1 Hole/Notch = thinnest gasket
• 3 Hole/Notch = medium thickness
• 5 Hole/Notch = thickest gasket

Typical Thickness Correlation:

• 1 Hole → approx. 1.45 mm
• 3 Hole → approx. 1.55 mm
• 5 Hole → approx. 1.65 mm

For best results:

• Match the original gasket marking whenever possible
• Measure piston protrusion if the engine block or head has been machined
• Verify using OEM part number and VIN/chassis code

Please contact us before ordering if you are unsure which gasket thickness your engine requires.

⚠️ Professional installation recommended.

⚠️ All sales are final.
