Ultimate Cooling Package for Your Toyota HiAce H100
Built for the 1KZ-TE Turbo Diesel - These apply to all Toyota Diesels
Overheating is one of the most common—and expensive—issues faced by HiAce H100 vans, especially those running the 1KZ-TE. Whether you’re daily driving, overlanding, towing, or running a camper conversion, keeping exhaust gas temperatures (EGTs) and coolant temps under control is critical to engine longevity and performance.
After years of testing, real-world driving, and customer feedback, we’ve put together what we consider the Ultimate Cooling Package for the HiAce H100—a system-based approach that addresses airflow, heat management, and monitoring, not just one weak point.
Why the H100 + 1KZ-TE Runs Hot
The 1KZ-TE is a strong and capable engine, but it has a few known limitations:

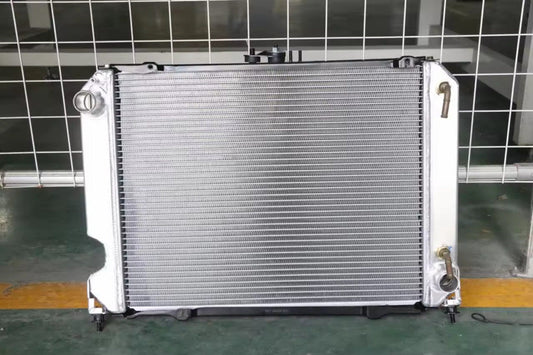

- Restricted airflow through the radiator
- Aging fan clutches that no longer fully engage
- Limited factory cooling capacity under load
- EGR-related heat and soot buildup
- Minimal factory temperature monitoring
Fixing just one of these won’t solve the problem. Cooling is a system, and it needs to be treated that way.
The Ultimate Cooling Package (What Actually Works)

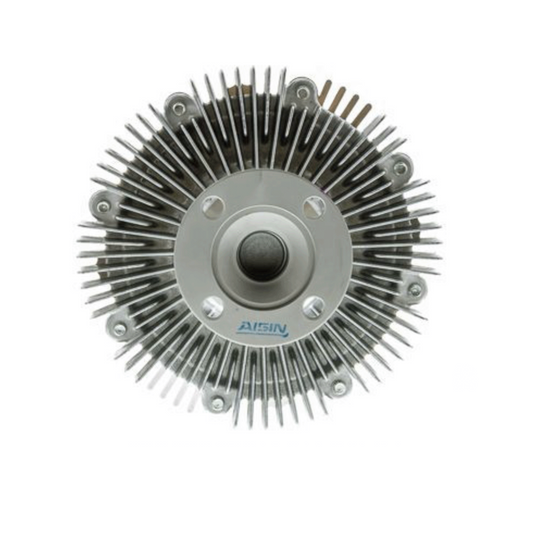

1. Modified or Upgraded Fan Clutch
As fan clutches age, they often stop locking up properly—especially when hot.
You have two solid options:
- Replace with a modified high-engagement fan clutch, or
- Modify your existing clutch to engage earlier and harder
This ensures the fan actually pulls air when the engine needs it most.
2. 10-Blade Cooling Fan Upgrade
The factory 5-blade fan simply doesn’t move enough air under heavy load.
Upgrading to a 10-blade fan dramatically increases airflow across the radiator, especially at low speeds, hill climbs, and off-road driving where airflow is limited.
More blades = more airflow = lower temps.
3. New Thermostat
A tired or partially stuck thermostat can sabotage your entire cooling system.
Installing a fresh, correct-temperature thermostat ensures proper coolant flow and consistent operating temperatures—no guesswork.
4. Full Coolant Flush
Old coolant loses its ability to transfer heat efficiently and can leave deposits inside the block and radiator.
A proper coolant flush and refill:
- Improves heat transfer
- Protects against corrosion
- Restores cooling efficiency
This step is non-negotiable if you’re serious about cooling.
5. EGR Block-Off + Temperature Monitoring
Blocking the EGR reduces hot exhaust gases being reintroduced into the intake, which:
- Lowers combustion temperatures
- Reduces soot buildup
- Improves throttle response
At the same time, installing a temperature sensor with a dash-mounted display lets you actually see what’s happening—coolant temps, EGTs, or both—so you’re never guessing.
If you’re running a turbo diesel without real temp data, you’re flying blind.
6. The Game-Changer: 3” Stainless Steel Turbo-Back Exhaust
This is where things get serious.
After extensive testing, the single biggest temperature drop we’ve ever seen on a 1KZ-TE came from installing a 3” stainless steel turbo-back exhaust.
Real Results:
- EGT and engine temps dropped by up to 20%
- Reduced backpressure
- Turbo spools more efficiently
- Noticeable increase in power
- Less stress on the engine under load
This isn’t a “nice-to-have”—it’s a cornerstone of proper thermal management on a turbo diesel.
The Result: A Cooler, Stronger, More Reliable HiAce
When all of these upgrades work together, the difference is dramatic:
- Lower operating temperatures
- Improved reliability
- Increased power and drivability
- More confidence on long climbs, hot days, and loaded trips
This is the best cooling setup we’ve seen for the HiAce H100 with a 1KZ-TE, period.
Final Thoughts
Cooling issues don’t come from one bad part—they come from an outdated system being pushed beyond its limits. The Ultimate Cooling Package fixes the system as a whole.
If you’re serious about protecting your engine, improving performance, and extending the life of your HiAce, this is the path forward.
